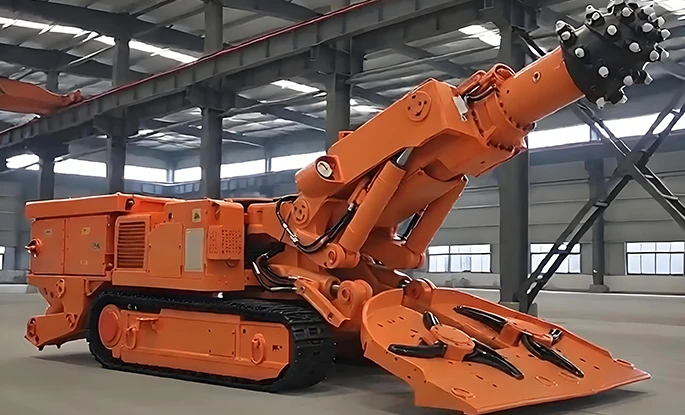

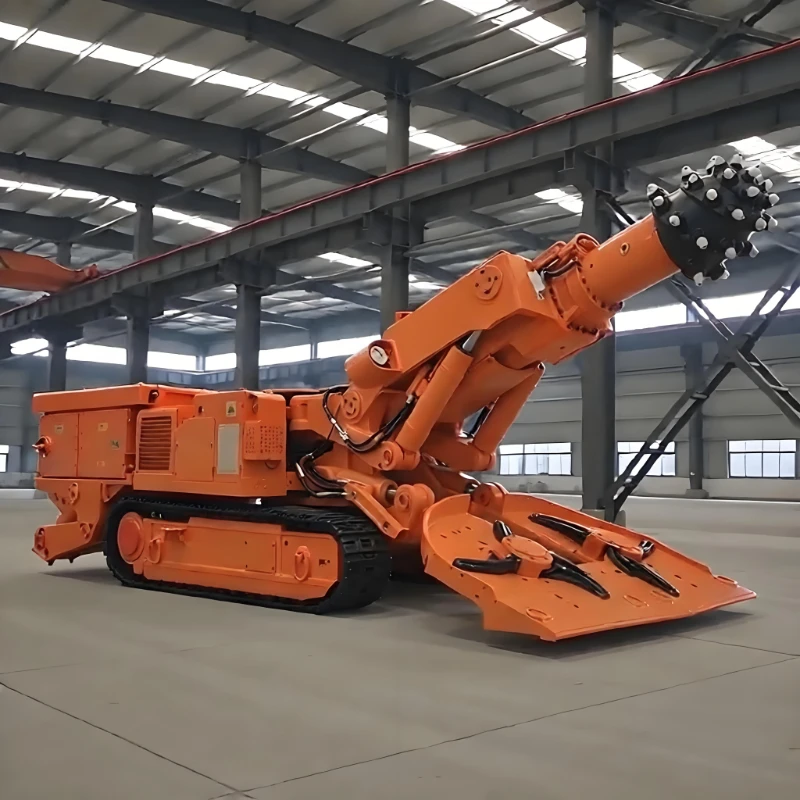

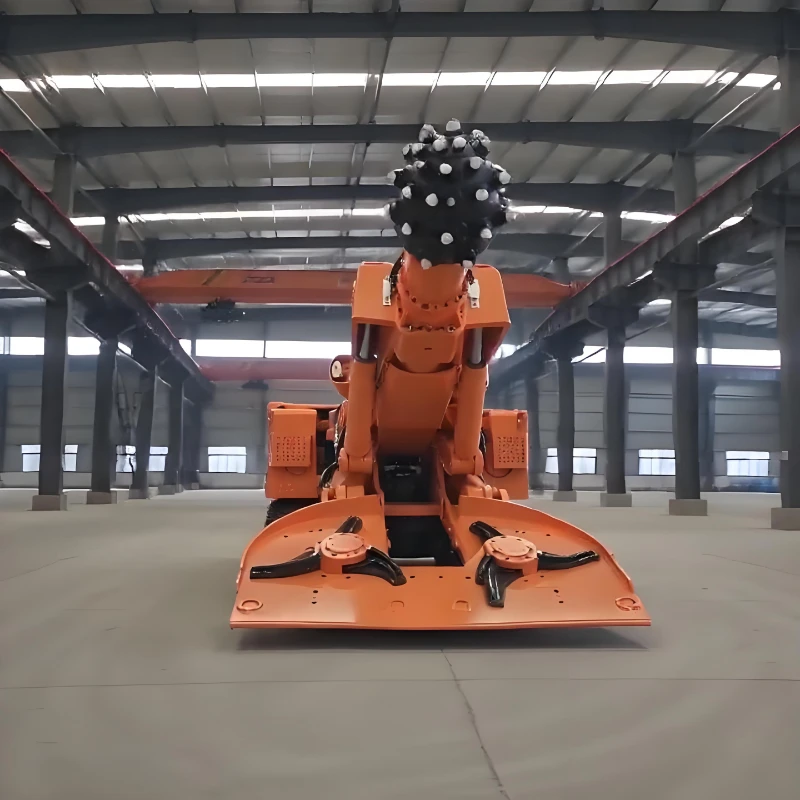

EBZ135 Boom-Type Roadheader
The EBZ135 boom-type roadheader is a lightweight special machine for medium-and-small roadway excavation. Compact in structure, it integrates cutting, material gathering & conveying and crawler traveling functions. Designed for narrow roadways in small and medium-sized mines, it is equipped with a telescopic cutting unit for flexible cross-section adaptation. The modular split structure facilitates transportation and assembly in confined underground spaces. Dual-voltage power supply fits power systems of different mining areas. Balanced efficiency and economy make it a preferred option for roadway construction in small-medium coal mines and non-metal mines.
The EBZ135 boom-type roadheader is a lightweight special machine for medium-and-small roadway excavation. Compact in structure, it integrates cutting, material gathering & conveying and crawler traveling functions. Designed for narrow roadways in small and medium-sized mines, it is equipped with a telescopic cutting unit for flexible cross-section adaptation. The modular split structure facilitates transportation and assembly in confined underground spaces. Dual-voltage power supply fits power systems of different mining areas. Balanced efficiency and economy make it a preferred option for roadway construction in small-medium coal mines and non-metal mines.
| EBZ135 Boom-Type Roadheader Main Parameters | |
| Overall Weight (t) | 38.8 |
| Body Length (m) | 8.92 |
| Body Height (m) | Cover plate 1.48 / Cutting head horizontal 1.77 |
| Track Width (m) | 2.2 |
| Shovel Plate Width (m) | 2.5/2.8 |
| Positioning Cutting Width (non-telescopic/telescopic) (m) | 2.1~4.0/2.2~4.7 |
| Positioning Cutting Height (non-telescopic/telescopic) (m) | 3.3~5.1/3.3~5.9 |
| Cutting Area (m²) | 6.93~20.4/7.26~27.73 |
| Climbing Capacity (°) | ±18 |
| Cutting Head Weight (kg) | 200 |
| Shovel Plate Weight (kg) | 200 |
| Maximum Digging Depth (m) | 70/50 |
| Ground Bearing Pressure (kPa) | 0.135 |
| Cutting Motor Power (kW) | 135 |
| Cutting Head Speed (r/min) / Telescopic Stroke (mm) | 44/37/0/550 |
| Oil Pump Motor Power (kW) | 75 |
| Supply Voltage | AC1140V/660V~50Hz |
| Maximum Non-detachable Part Dimensions (m) | Main frame 3.42×1.39×1.28 (split type available) Front drum 3.89×0.72×0.56 Rear support frame 1.47×2.2×1.05 |
| Maximum Weight of Non-detachable Parts (t) | 5.37 |
Telescopic Cutting for Multiple Cross-sections
The cutting head features a 550 mm telescopic stroke. Dual working modes (telescopic / non-telescopic) cover cross-section areas from 6.93 ㎡ to 27.73 ㎡. One unit adapts to various roadway sizes and improves equipment utilization.
Cost-effective Excavation for Medium-hard Rock
It cuts rock with uniaxial compressive strength up to 70 MPa and delivers stable, low-cost performance at 50 MPa, perfectly matching regular mining tasks of coal seams and medium-strength surrounding rock.
Excellent Maneuverability in Narrow Roadways
With a total weight of 38.8 t and body length of 8.92 m plus 2.2 m track width, it achieves a low ground pressure of 0.135 MPa to avoid sinking. The ±18° climbing capacity handles undulating roadways with flexible steering and movement in narrow tunnels.
Convenient Underground Transportation & Assembly
The heaviest single non-detachable component weighs only 5.37 t with compact segmented dimensions. The split structure allows separated lowering into mines and simplifies on-site assembly in space-limited small-medium mines.
Wide Power Supply Compatibility
Dual-voltage input (AC1140 V / 660 V) matches underground power standards worldwide. The matched power combination of a 135 kW cutting motor and a 75 kW oil pump motor ensures balanced power output, lower energy consumption and reduced maintenance costs during continuous operation.
