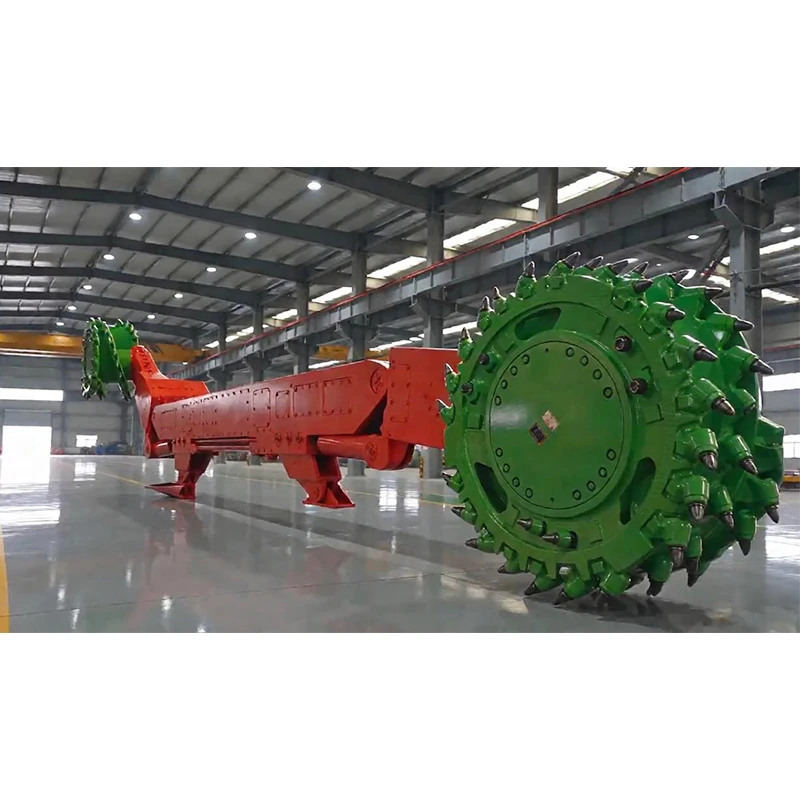

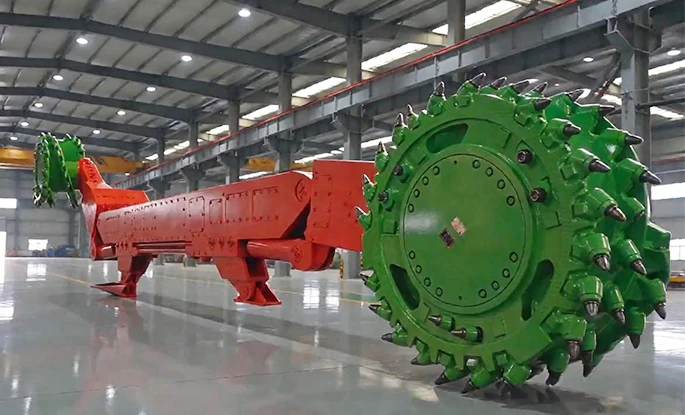

MG600/1450-WD High-Power AC Haulage Shearer
The MG600/1450-WD high-power AC haulage shearer is engineered for high-yield working faces in thick coal seams. The product portfolio also includes MG500/1180-WD, MG500/1210-WD, MG550/1310-WD and MG650/1550-WD variants. The flagship MG600/1450-WD is offered in low-profile and high-profile configurations: low-profile mining height 2.3–4.5 m, high-profile mining height 2.5–5.3 m, perfectly matching large-cut thick-seam mining scenarios.Installed power reaches 1450 kW, haulage speed ranges 0–9.7 m/min and haulage force hits 946 kN.
The MG600/1450-WD high-power AC haulage shearer is engineered for high-yield working faces in thick coal seams. The product portfolio also includes MG500/1180-WD, MG500/1210-WD, MG550/1310-WD and MG650/1550-WD variants. The flagship MG600/1450-WD is offered in low-profile and high-profile configurations: low-profile mining height 2.3–4.5 m, high-profile mining height 2.5–5.3 m, perfectly matching large-cut thick-seam mining scenarios.Installed power reaches 1450 kW, haulage speed ranges 0–9.7 m/min and haulage force hits 946 kN. Equipped with on-board AC variable-frequency speed regulation and rack-pinion travelling mechanism, the machine adapts to working inclinations up to 35°. Optional drum diameters are 2000/2250/2500/2600 mm with two web-depth options (800 mm & 865 mm); drum rotating speed is 31 r/min, and sumping depth reaches 300 mm when paired with φ2000 mm drums for outstanding coal breaking and floor cleaning performance.Powered by standard 3300 V high-voltage mine power supply, the machine weighs about 86 tons and works with heavy-duty scraper conveyors SGZ800, SGZ900 and SGZ1000. Integrated intelligent functions such as remote communication, memory cutting, one-key start-stop and fault diagnosis make it a flagship unit for large-scale automated mining in smart modern mines.
| MG 600/1450-WD Series Coal Mining Machine Technical Parameters | ||||||||
| Model | MG500/ 1180-WD |
MG500/ 1210-WD |
MG550/ 1310-WD |
MG600/ 1450-WD |
MG650/ 1550-WD |
|||
| Mining height (m) | Dwarf 2.3~4.5 | |||||||
| High-strength type 2.5~5.3 | ||||||||
| Machine surface height (mm) | Dwarf 1551 | |||||||
| High-end 2029 | ||||||||
| Coal passage height (mm) | Dwarf 731 | |||||||
| High-end 1087 | ||||||||
| Adaptable tilt angle (°) | ≤35° | |||||||
| Installed power (kW) | 1180(2×500 +2×75+30) |
1210(2×500 +2×90+30) |
1310(2×550 +2×90+30) |
1450(2×600 +2×110+30) |
1550(2×650 +2×110+30) |
|||
| Traction speed (m/min) | 0~9.1 | 0~9.7 | 0~11.6 | |||||
| Traction force (kN) | 840 | 946 | 966 | |||||
| Speed adjustment method | Airborne AC variable frequency speed control | |||||||
| Traction method | Gear and pin type | |||||||
| Rocker arm rotation center distance (mm) | 9000 | |||||||
| Rocker arm length (mm) | 2947 | |||||||
| Drum diameter (mm) | 1800;2000;2250;2500 | 2000;2250;2500;2600 | ||||||
| Cut-off depth (mm) | 800; 865 | |||||||
| Roller speed (r/min) | 35 | 31 | ||||||
| Undercover measurement (mm) | 300 (φ2000 roller) | |||||||
| Supply voltage (V) | 3300 | |||||||
| Total weight (t) | Approximately 80 | Approximately 86 | ||||||
| Supporting transport aircraft | SGZ800; SGZ900; SGZ1000 | |||||||
1. Intelligent electric control & comprehensive safety protection
Stable AC variable-frequency speed regulation is paired with multi-level protection, fault diagnosis and historical data storage. Functions including remote data transmission, memory cutting, remote control and one-key start-stop fully satisfy smart mine automation demands; key operating parameters are displayed in Chinese for intuitive monitoring. Each cutting motor is fitted with a clutch and elastic torque shaft to absorb overload impact and prevent rigid damage of motors and transmission parts.
2. Robust structure & convenient maintenance
Split straight ranging arms are interchangeable left-to-right for higher spare-part versatility. Ranging-arm housings are cast from imported special steel exclusive for shearers to resist abrasion and heavy impact. The frame is fastened by hydraulic pull rods and high-strength bolts for excellent structural rigidity. Imported wear-resistant materials are adopted for guide shoes; triple gear pumps supply oil centrally to lift two drums synchronously with quick response.
3. High-power heavy-duty performance for thick-seam high output
946 kN strong traction supports stable operation on slopes up to 35°. Multiple large-drum sizes and two web-depth choices plus 300 mm sumping depth remove residual floor coal and reduce manual cleaning work. Low-speed high-torque drum output boosts hard-coal breaking efficiency and lump coal yield.
4. Excellent system compatibility with face equipment
Factory-matched with heavy-duty SGZ-series scraper conveyors without major site reconstruction. 3300 V high-voltage power input fits mainstream high-voltage power grids of large domestic and overseas mines. Gradient multi-model lineup allows customized selection according to local seam thickness, hardness and inclination.
5. Full-cycle overseas technical support
We tailor machine configuration and drum specifications based on local seam conditions, power supply and conveyor models; deliver integrated mining face solutions, on-site commissioning, intelligent operation training and long-term supply of genuine wear-resistant spare parts worldwide.
